Ravin R18 Crossbow

Model: 815942020807


Available on backorder

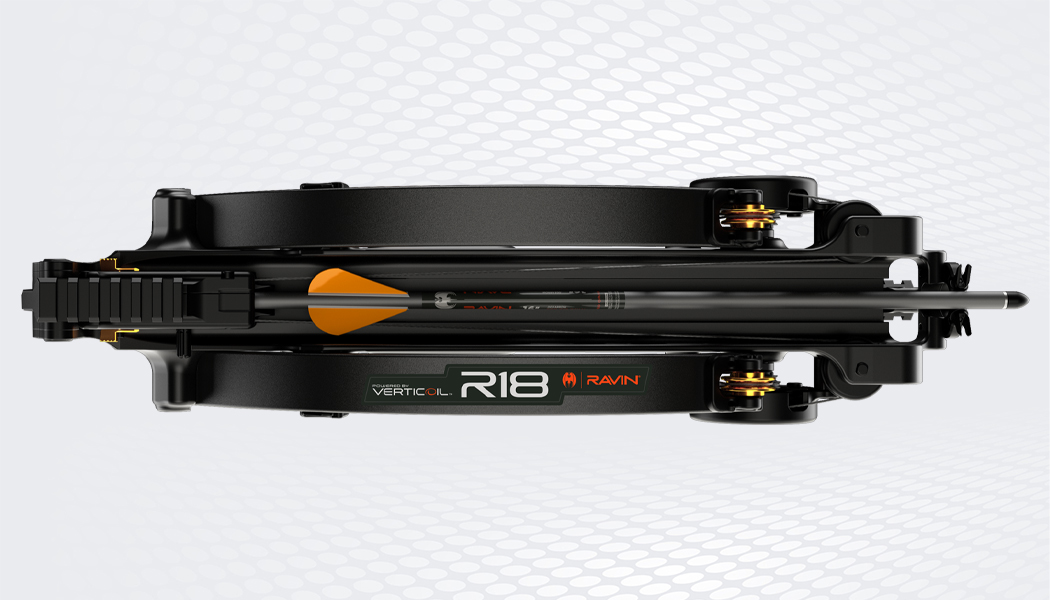

Ravin R18 Crossbow

Utilizing the new proprietary VertiCoil Cam System, the R18 is the shortest Ravin ever created at just 18 inches in length. The VertiCoil Cam System rotates the ultra-small cams 720 degrees, coiling the strings and cables around the cam and cam axle allowing an axle-to-axle height of just 1.3 inches cocked or 4.1 inches when uncocked, with a static overall width of 4.75”. The R18 is a takedown style crossbow with limbs that expand vertically, shooting 330 feet per second. The R18 includes a detachable stock with an integrated removable quiver system, making the total length roughly 25 inches when fully in-tact. The unique 6-pound crossbow features the new Ravin 3-Dot Reflex Sight for easy target acquisition, and includes the Ravin built-in cocking mechanism, allowing for an easy draw. The R18 comes in black and is available Spring 2021.330 FPS

Weight: 6 LBS

Length:18” Without Stock, 25” With Stock

Height Axle to Axle Cocked: 1.3” Height Axle to Axle Uncocked: 4.1”

Overall Width: 4.75”

Power-Stroke: 13”

Kinetic Energy: 85 FT LBS

Draw Effort: 12 LBS

Draw Weight: 250#

VertiCoil Cam System

Detachable Stock/Quiver

Fully Assembled/Pre-Tuned

3 – 16” .003 350 Grain R18 Arrows with Field Points

1 – Removable Draw Handle

Ravin 3 Dot Reflex Sight

Built-In Cocking Mechanism

Anti-Dry Fire/Auto Safety

Built-in Sling Mounts
